Mr. Steam MX4E
MS MAX Series 20kW MX4E Steam Shower Generator, Mr. Steam
Improving on the popular MS Super 4E, the MX4E is designed for home and day spa steam rooms up to 678 adjusted cubic feet (ACF).
- For steam baths sized from 676 to 875 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
- 20kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
- Installation and operation manual
- Limited warranty
| Model | MS MX4E |
|---|---|
| Minimum Adjusted Cubic Feet | 676 |
| Maximum Adjusted Cubic Feet | 875 |
| Shipping Weight | 67 lbs |
| Kilowatt Rating | 20 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 27-5/8" |
| Depth | 7-7/8" |
| Height | 20-3/4" |

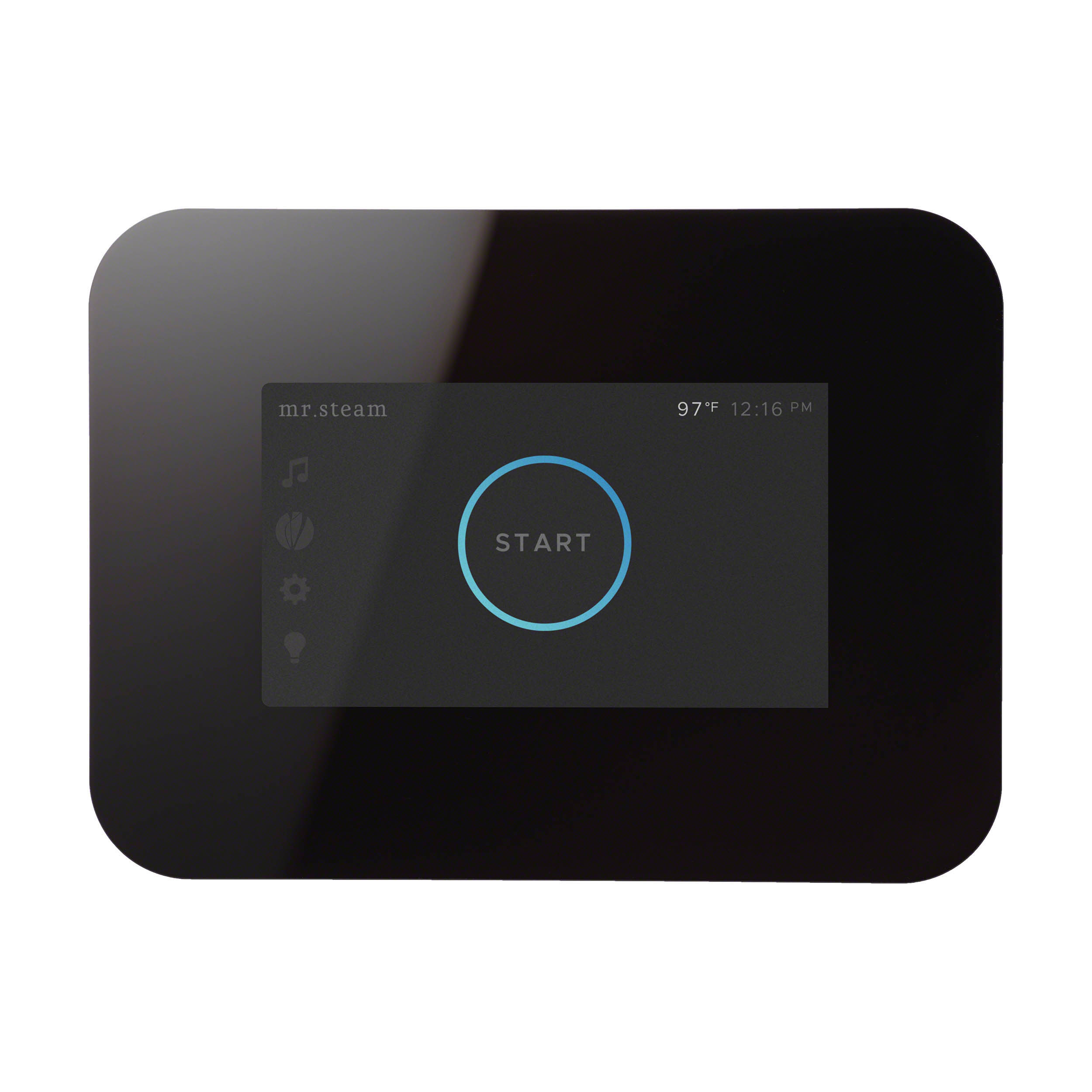

Experience the state-of-the-art technology and convenience of the in-shower Mr. Steam iSteam3 steam shower control package.

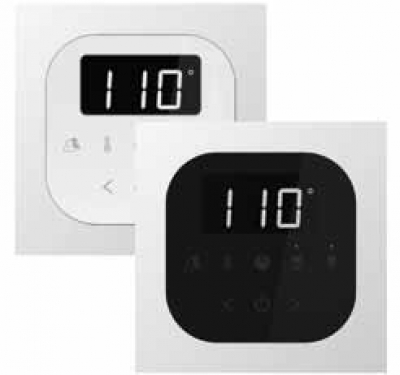

No cables, no wires, and no hassle— the Mr. Steam AIRT control package is an easy-to-use and convenient way to control the steam shower.

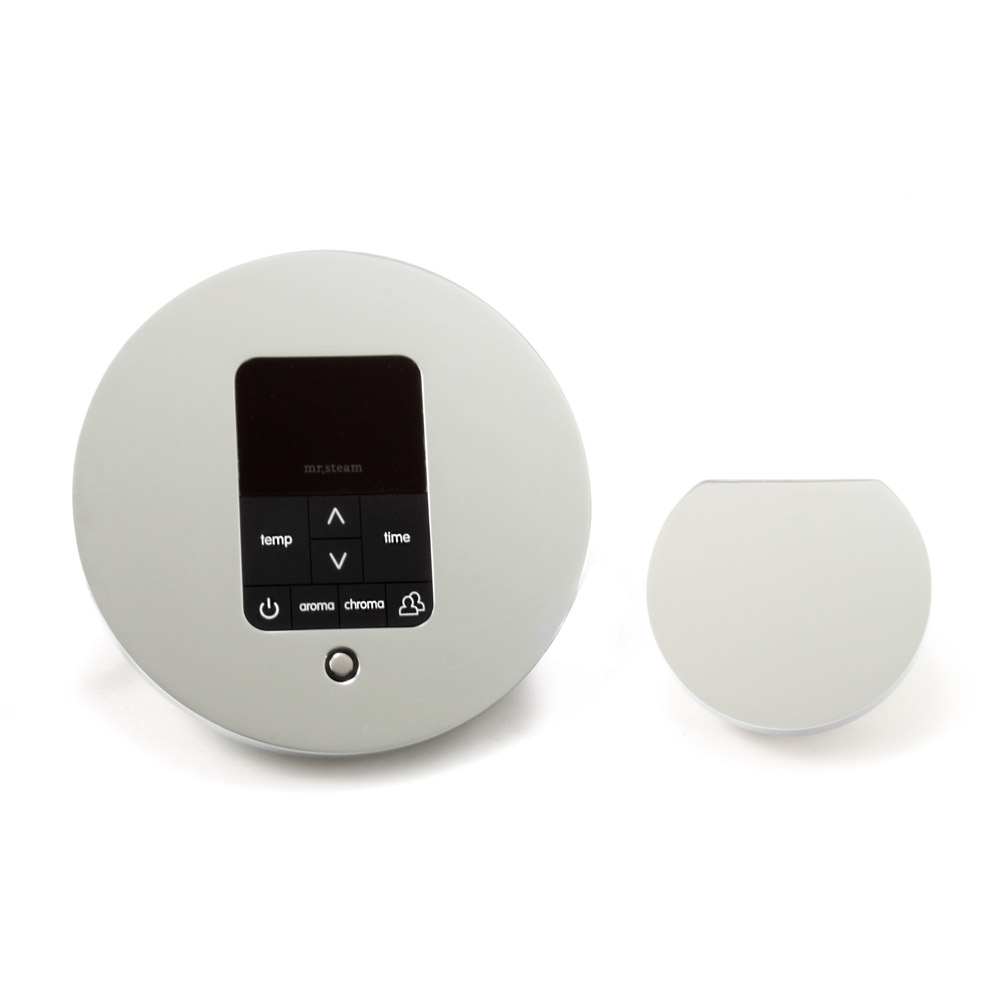

When installed with a Mr. Steam MS-E or Super-E Series steam generator, the advanced Mr. Steam MS iTempoPlus steam shower control provides complete control of the steam room.

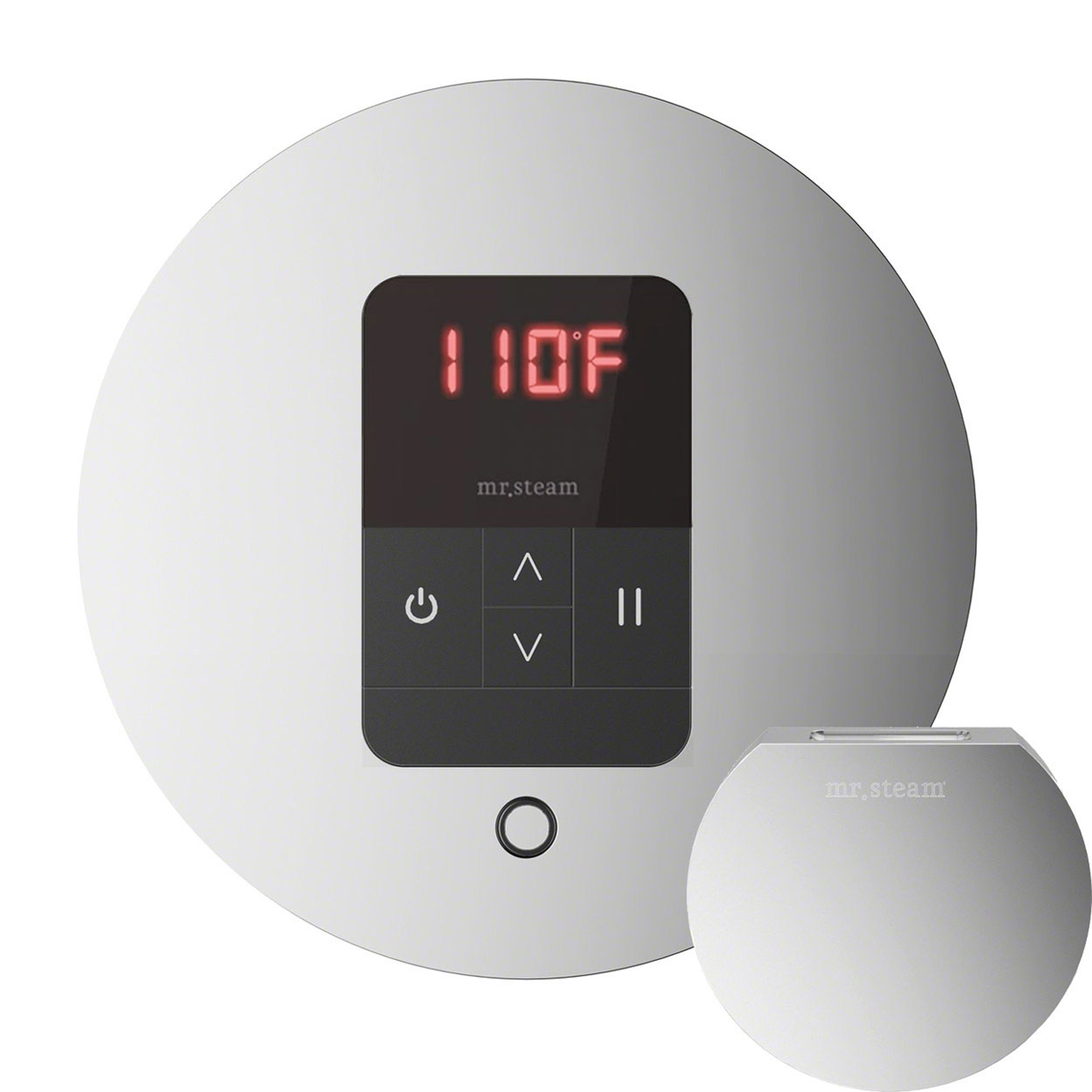

When installed with a MS E-series generator, the Mr. Steam MS iTempo control package offers ultimate control of the home steam room.

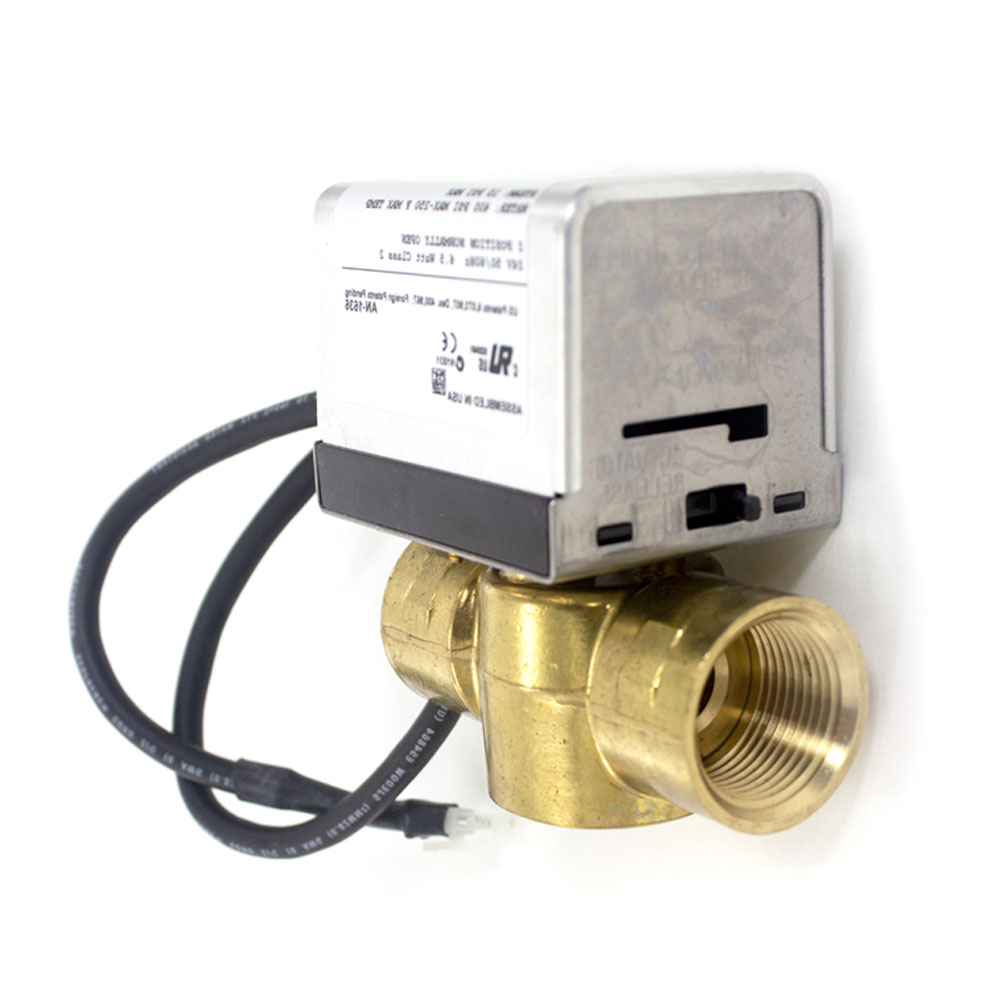

Automatic draining is available on any Mr. Steam MX residential or CT Day Spa Series residential steam generator with the installation of this motorized, electronically operated drain valve.

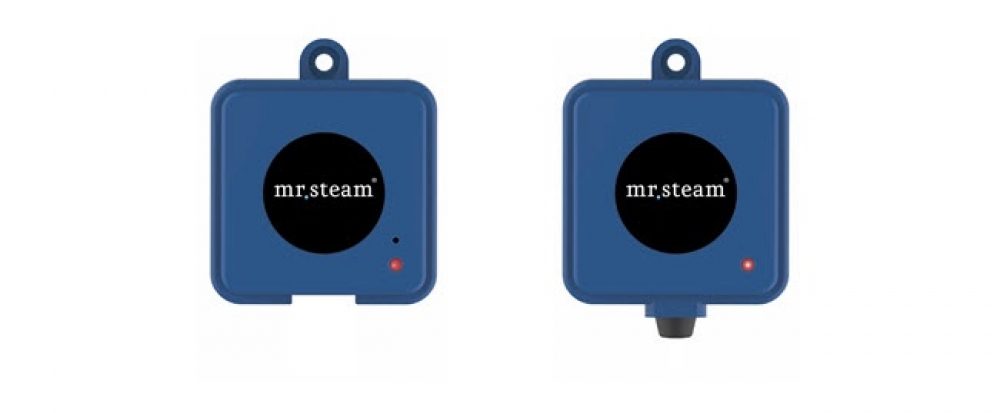

The Mr. Steam Steamlinx System provides wireless control of the steam room from smart phone or mobile device.

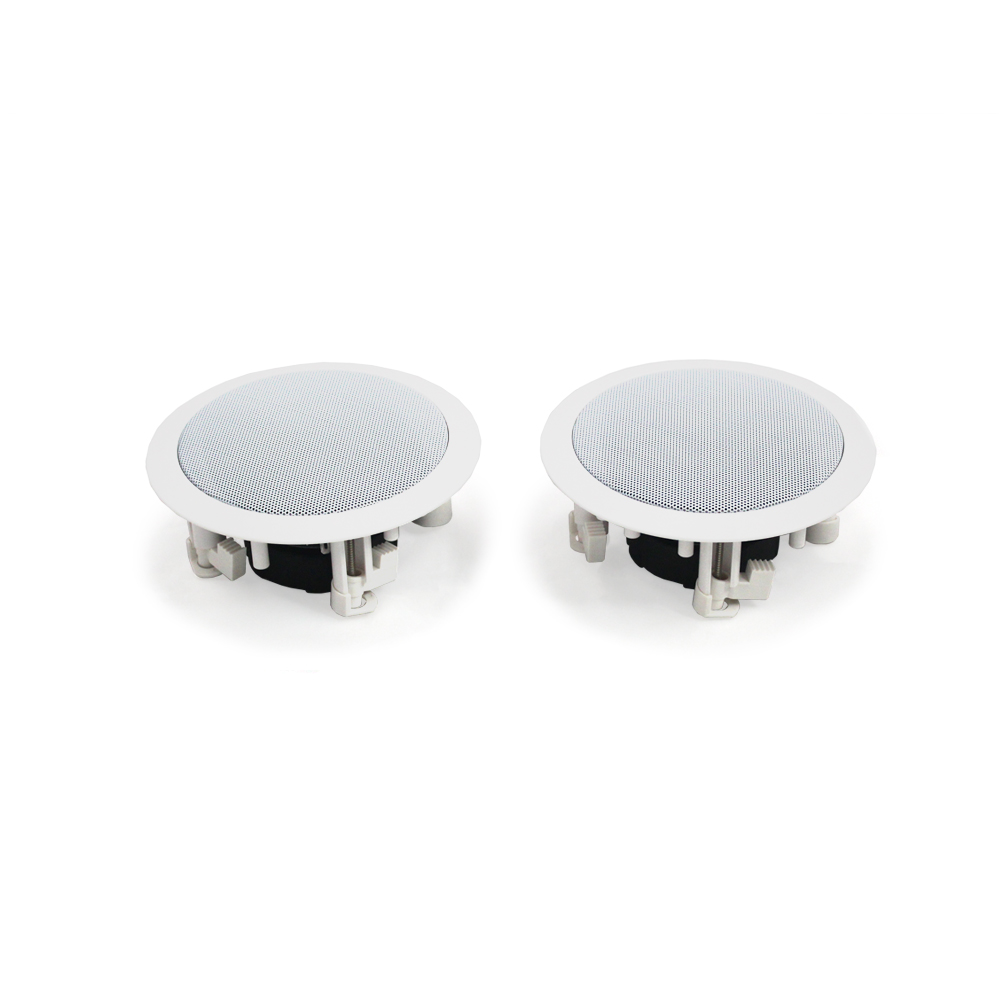

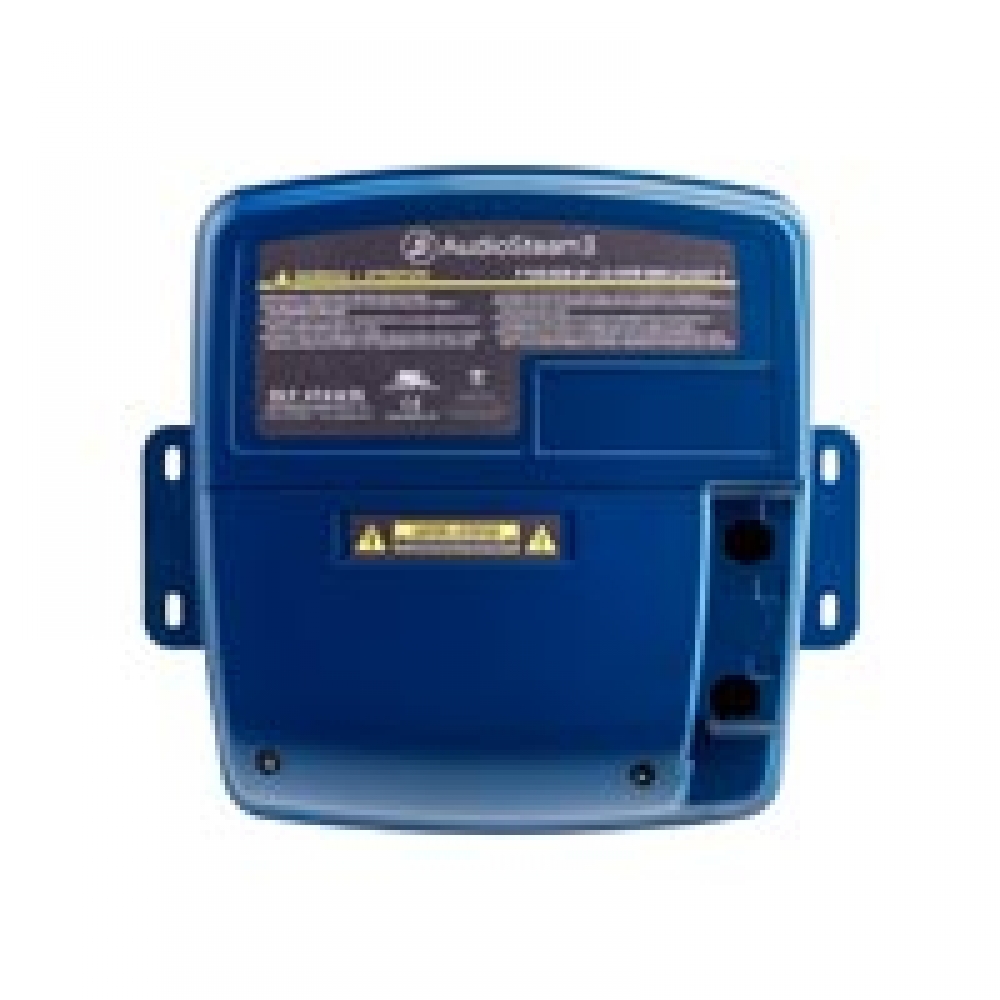

The Mr. Steam MSA3 AudioSteam3® Bluetooth® sound system is the perfect enhancement to your steam shower experience.

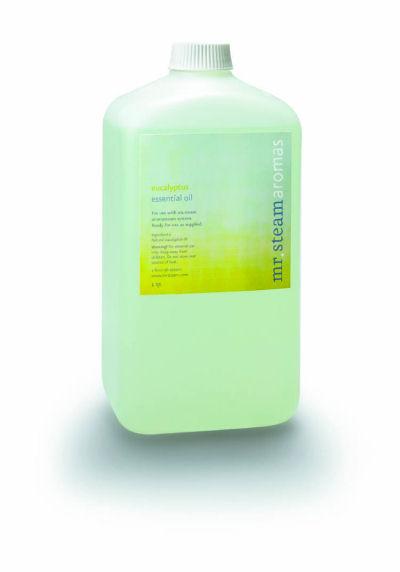

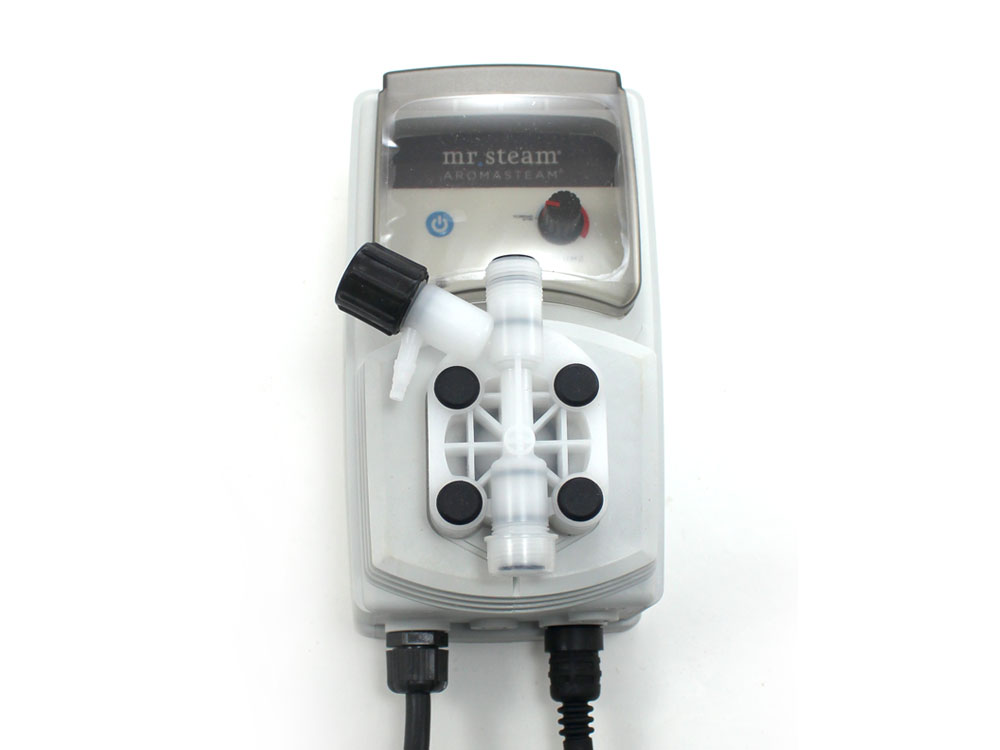

Installed out-of-sight and near your steam bath generator, the AromaSteam electronic oil delivery system will deliver your favorite aroma oil directly into the steam line.
Transform your steam room into an aroma bath.

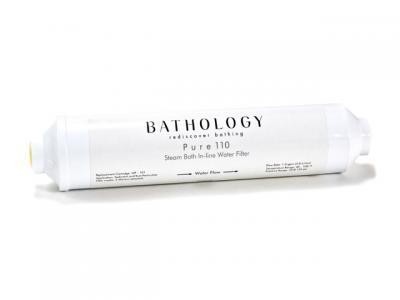

Steam Bath Generator In-Line Water Filter, Bathology
Pure 110 is the ideal, low-cost steam bath in-line water filter by Bathology!
Steam Bath Generator Water Filter with Replaceable Cartridge, Bathology
Pure 410 is the ideal steam bath water filter by Bathology!
Pure 410 utilizes a 10-micron tightly spun; drop-in filter media to reduce the steam bath generator water particulate which contributes to scale build-up and clogged orifices.
Ideal steam bathing water by Bathology!

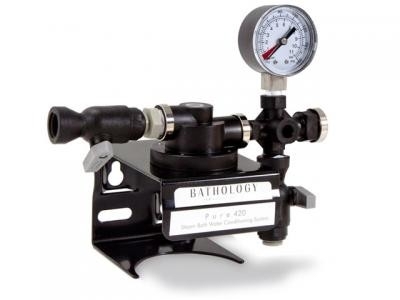

Preserve steam bath generator warranties, extend equipment life and enhance the steam bathing experience with Pure 420 water conditioning innovation.
